Wire rope plays the role of lifting, traction, and widely used in various equipment in our daily life. The closer it is to our production and life, the more important its safety is to us. In order to avoid safety accidents caused by wire rope breakage, more and more companies have begun to introduce online wire rope monitoring systems into their maintenance systems.
What is the wire rope online monitoring system?
The wire rope online monitoring system is a kind of equipment specially used to monitor and detect the running state of the wire rope. It obtains the running data and status information of the wire rope in real time by using the sensor for flaw detection, and connects it to the main control station system through the network to provide real-time monitoring data, the system can also remind relevant personnel to pay attention to the safety status of the wire rope through the automatic alarm function.

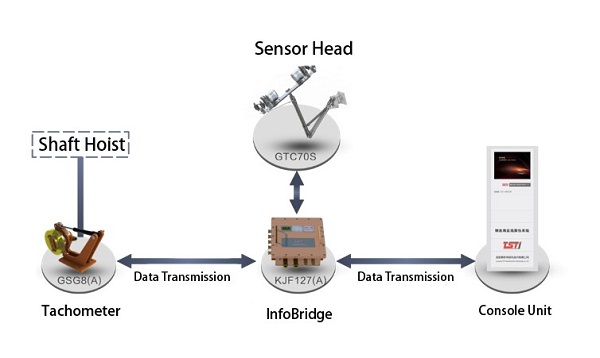

2. Basic composition of wire rope online monitoring system
.jpg)
Wire rope flaw detection sensor: it is the basic technical unit of the system, designed to meet the requirements of mine explosion-proof and intrinsically safe products, which is capable of accurately detecting the inside and outside of the wire rope damages, such as broken wires, abrasion, corrosion, fatigue, etc.
InfoBridge: it is the main technical product unit of the system, designed to meet the requirements of mine explosion-proof and intrinsically safe requirements. It is installed near the sensor head for flaw detection, and realizes the following three functions: analysis and identification the inspection data, calculating the wire rope length in order to achieve the information interconnection.
Tachometer: it meets the requirements of mine explosion-proof products. Associated with the running of steel wire rope to calculate the the length and flaw location.
Console unit: the terminal station for system master command control, information processing, calculation analysis, storage and output, with single set and single station configuration, installed and used on the ground.

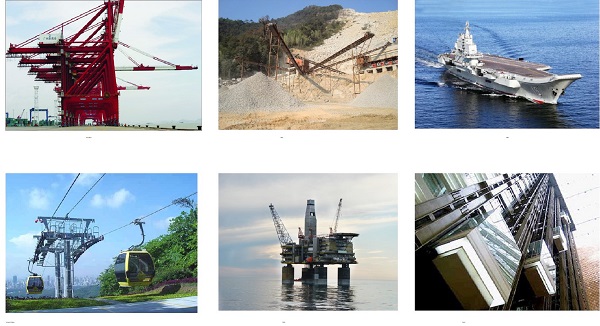

The application scope of the wire rope online monitoring system.
.jpg)
Our online equipment can be used on various industries and provided wire rope inspection for different equipment.
1) Mining equipment: Lifting equipment, conveying belt equipment, shearer, etc.
2) Port crane
3) Oil rig
4) Construction tower crane
5) Elevator
6) Cableway
